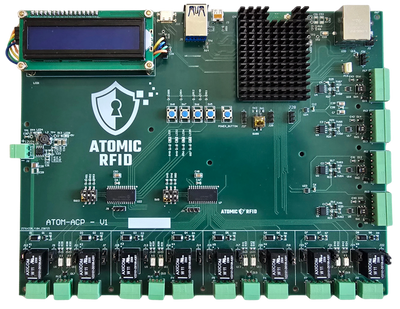

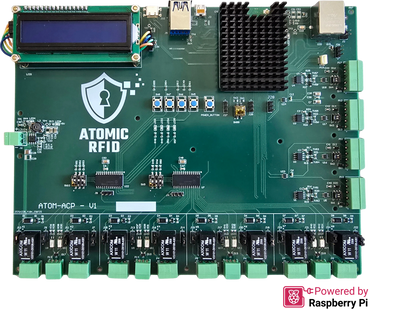

ATOM-ACP - Smart Access control Panel

---

ATOM-ACP panels bring advanced security to gated communities and secure facilities, managing 2 or 4 doors with a fast 8GB core. AI tracks tag usage, while the 1602 LCD offers clear status updates. Each door supports RS485, Wiegand 26, and relay outputs for easy connections. Designed for installers, by installers, it’s durable and adaptable, ensuring reliable control without complications. There is nothing like it on the market and we are proud to bring our flagship access control panel directly to you!

• Core Processor: Quad-core Arm Cortex-A76 at 2.4GHz with 8GB LPDDR4X RAM (ECC-enabled) and 64GB eMMC storage on a custom PCB, optimized for AI-driven tasks and multi-door management.
• Door/Reader Support: Controls up to 4 doors via Wiegand or OSDP protocols; includes 4 REX inputs, 4 auxiliary inputs, and 4 auxiliary relays (internal or external power options).
• Connectivity: RJ485, HDMI output, 2x USB-A ports, 1x USB-C port, 12VDC input; 1602 LCD screen for real-time diagnostics.
• Display: 1602 LCD—clear status at a glance.
• Connections: RS485, Wiegand 26 per door.
• Built in Wi-Fi connect wirelessly and take advantage of the next generation in access control technology.

• AI Tracking: Monitors tag activity, flags issues.
• Outputs: Door and aux relays - dry or 12V selectable.
• Inputs: REX and aux - simple integration.
• Installer-Ready: Fast setup, robust design.
• Secure: High-speed microcontroller, protected operation.
• Screen: LCD provides live updates.
• Flexible: Adapts to any gate or facility.
• Automatically decrypts encoding on ATOM-ID Tags even if you are using 3rd party readers.

• Web-based interface for configuration, monitoring, and secure remote access.
• Onboard full featured "Access Station" Operating System - AtomicOS (Linux base architecture)
• Integration: Open APIs for extensions; edge AI for anomaly detection and access decisions.
• Scalability: Ethernet networking for multi-panel setups; auto-sync, audit logging, configurable retention, and event notifications.
• Unique "Access Control Station" Mode: Transforms the panel into an interactive workstation - connect peripherals or access remotely for full terminal functionality, including control, queries, and browsing. This innovation eliminates traditional silos and vulnerabilities of separate panels and servers, reducing installation time by up to 50%, minimizing failure points, and enhancing security through a consolidated design. It delivers on-site computing power equivalent to a desktop computer, streamlining maintenance and enabling rapid adjustments.
